Sale!

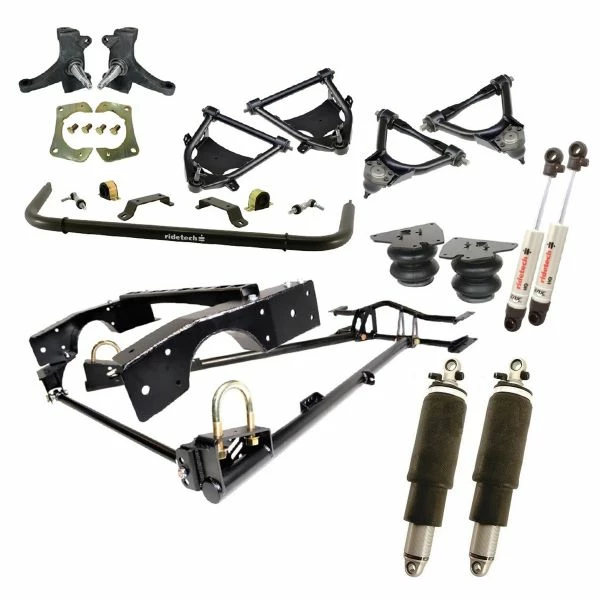

Promo 😉 RideTech HQ Air Suspension System For 63-70 C10 11340298 ⌛

Original price was: $535.00.Current price is: $96.99.

SKU: 64151 Category: Suspension

Where quality meets convenience.
Product guarantee 100% satisfaction
100% High-Quality Guarantee
Safe Transactions, Happy Customers

Description
Reviews (0)

2.5? Drop Spindles allows a lowered stance while maintaining suspension travel. The modular design allows for variety of brake options including Baer, Wilwood or the stock HD brakes (1.25? wide rotors).

Upper & Lower Tubular Control Arms feature corrected ball joint angles and increased caster to improve high speed stability and steering feel. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. They are powder coated black and fully assembled with ball joints, bushings and cross shafts, ready for installation.

Front CoolRide Air Spring setup includes HQ series rebound adjustable shocks and bolt-on upper shocks mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a monotube design, are rebound adjustable with 21 steps of adjustment and come with a 1,000,001 Mile Warranty.

Rear Trailing Arm System is completely bolt-on and provides mounting for the rear Shockwave air spring and shock assembly. The front trailing arm crossmember is designed to allow the exhaust to be run through it rather than under it providing additional ground clearance. The panhard is adjustable so you can optimize your tire clearance at the new lowered height and the mount has been relocated to optimize the bar length and angle for the lowered height. This helps keep the rea rend centered in the truck and lowers the roll center to minimize body roll. We use R-Joint rod ends on both ends of the bar. The C-notches are included with the kit and FIT the frame rail. The trailing arms optimizes the driveline angles for the lowered stance and utilize R-Joint at the front attachment. Compatible with all bed and cab configurations (requires use of 1 piece drive shaft.) *Shim kit required for installation in wood bed applications.

HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.

Front MucleBar Sway Bar helps reduce body roll and includes the PosiLink end links that provide immediate engagement between the chassis and control arms. To complete this Air Suspension system please choose from one of Ride Tech’s Compressor Systems.
